EA1000H9 Rental LED Wall

500 × 1000 mm Indoor and Outdoor Cabinets

250 × 250 mm modules, 500 × 1000 mm cabinet
Detachable power box and HUB board
The power box opens from the rear
Handles, locating slots and corner protection
Optional high-precision arc locks
140° viewing angle with 14-bit grayscale
At least 3,840 Hz refresh and ≥60 Hz frame rate

Reference model. Final configuration and supply scope confirmed with your quotation.

EXPLORE THE DETAILS

Product Details

Indoor and Outdoor EA1000H9 Rental LED Wall

A 500 × 1000 mm rental cabinet for indoor and outdoor work. Outdoor P2.6 to P4.81 models run 4,000 to 6,000 cd/m² behind IP65 front faces; indoor P1.56 to P3.91 models run 700 to 800 cd/m². Part of the rental LED display range.

Die-Cast Cabinet and Module Design

A die-cast aluminium frame with locating slots, ergonomic handles and corner protection. The 500 × 1000 mm panel weighs 13 kg outdoors and 12 kg indoors, light enough for two people to lift and align by hand.

Front and Rear Service Access

Magnet-mounted modules lift off from the viewing side and the power box opens from the rear. Cabinets can be serviced with the wall still rigged, so one failed module does not stop the show.

Curved Installation with Arc Locks (Optional)

Optional high-precision arc locks index each cabinet to a set angle, so a curve repeats at the same radius on the next build. Curved and flat sections can be mixed inside one screen.

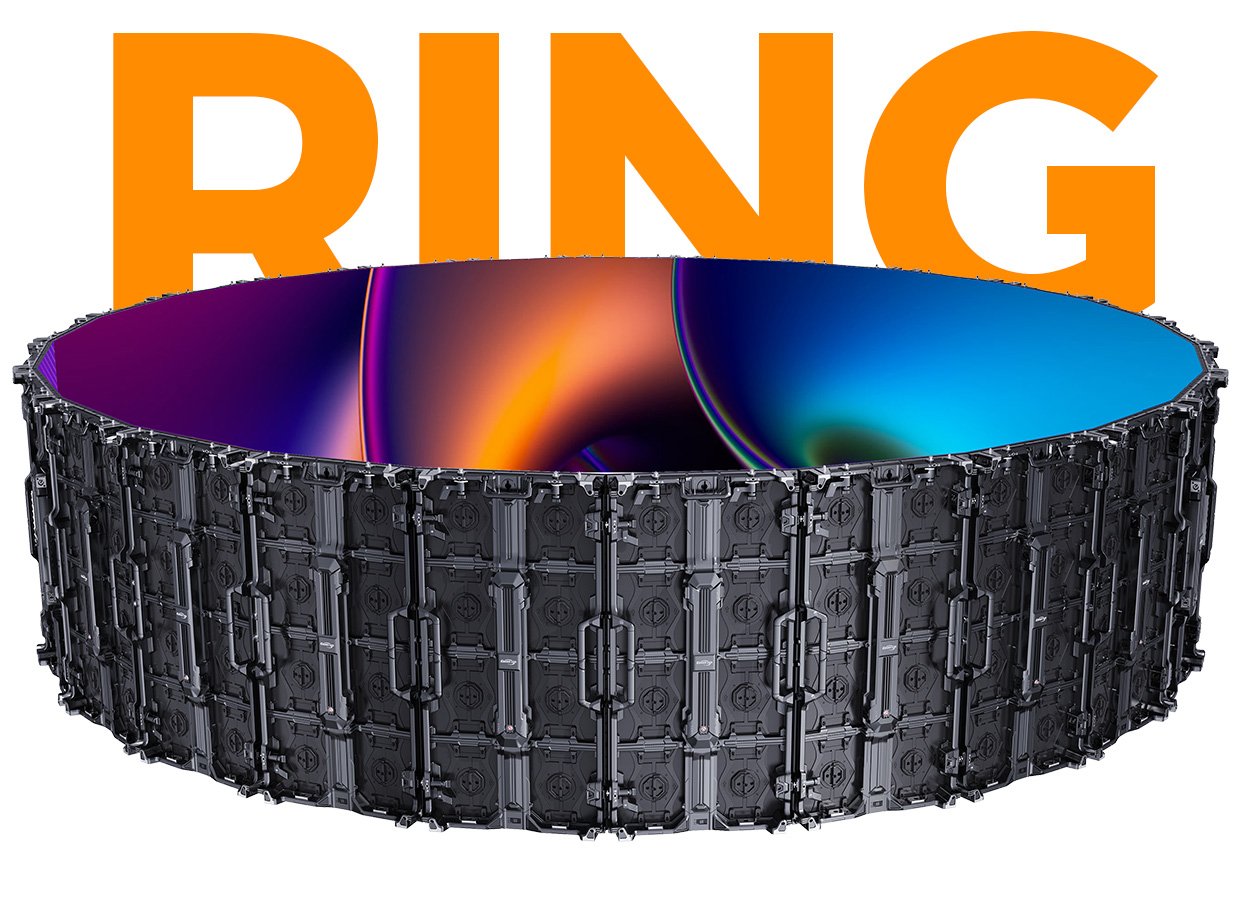

Circular and Ring Installations (Optional)

The same arc-lock hardware closes into a ring for circular and cylindrical screens. Ring builds suit stage backdrops, brand activations and exhibition stands where a flat wall will not work.

Detachable Power Box and HUB Board

The power supply and HUB board sit in a detachable rear box wired on a HUB connection rather than individual module cables, so the unit swaps out without re-cabling the cabinet.

Mixing the 500 × 500 mm EA500H9 Cabinet

The 500 × 1000 mm cabinet bolts to the 500 × 500 mm EA500H9 horizontally and vertically on the same 250 mm module grid, so one screen can carry a taller centre band or stepped edges.

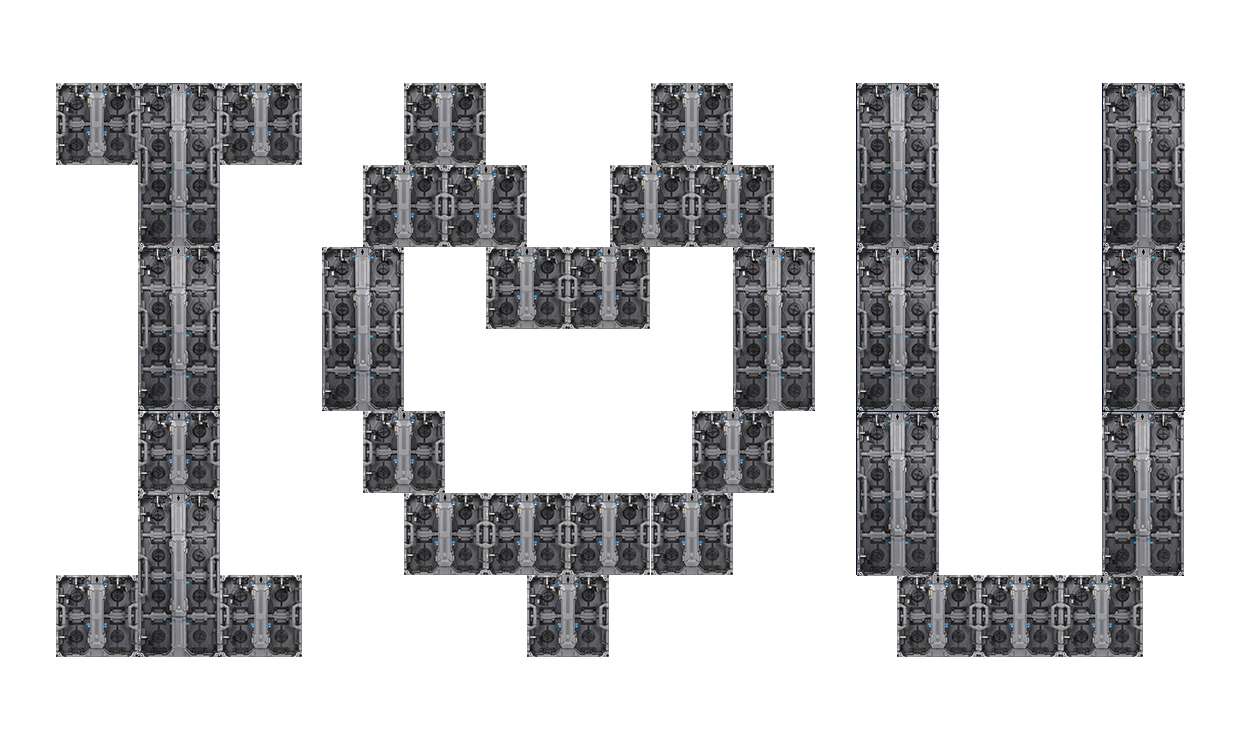

Staggered and Creative Builds

Because cabinets align on a 250 mm grid, they can be staggered and offset to build stepped, checkerboard and logo-shaped screens without custom steelwork.

≥3,840 Hz Refresh for Camera Work

At least 3,840 Hz refresh with 14-bit grayscale and ≥60 Hz frame rate removes scan lines and moiré from broadcast and phone cameras, which matters on stage backdrops that stay on camera.

Rental LED Wall for Events and Exhibitions

Stage backdrops, touring shows, exhibitions and conferences. Quick locks, dual-side service access and optional curves suit temporary builds that are rigged, struck and rebuilt many times a year.

Outdoor 500x1000mm EA1000H9 Rental LED Display Series Parameter

Pixel Pitch (mm)	P2.6	P2.97	P3.91	P3.91
Model	EA1000H9-OP2.6	EA1000H9-OP2.97	EA1000H9-OP3.91-16S	EA1000H9-OP3.91-8S
Pixel Configuration	SMD1415	SMD1415	SMD1921	SMD1921
Density (Pixels/㎡)	147,928	112,896	65,536	65,536
Module Resolution (Pixel)	96×96	84×84	64×64	64×64
Module Size (mm)	250×250	250×250	250×250	250×250
Driving Mode (Duty)	1/24	1/21	1/16	1/8
Cabinet Size (mm)	500×1000	500×1000	500×1000	500×1000
Cabinet Weight (KG)	13	13	13	13
Brightness (CD/㎡)	4500	4500	4800	6000
Viewing Angle (°)	140	140	140	140
Gray Grade (Bits)	14	14	14	14
Operation Power	AC100-240V 50-60Hz	AC100-240V 50-60Hz	AC100-240V 50-60Hz	AC100-240V 50-60Hz
Max. Power Consumption (W/㎡)	500	550	580	650
Avg. Power Consumption (W/㎡)	170	185	195	220
Frame Frequency (Hz)	≥60	≥60	≥60	≥60
Refresh Frequency (Hz)	≥3840	≥3840	≥3840	≥3840
Working Temperature (ºC)	-20～+60	-20～+60	-20～+60	-20～+60
Protection Grade	IP65(front), IP54(rear)	IP65(front), IP54(rear)	IP65(front), IP54(rear)	IP65(front), IP54(rear)

Pixel Pitch (mm)	P2.6	P2.97	P3.91	P3.91
Model	EA1000H9-OP2.6-B	EA1000H9-OP2.97-B	EA1000H9-OP3.91-16S-B	EA1000H9-OP3.91-8S-B
Pixel Configuration	SMD1415(black)	SMD1415(black)	SMD1921(black)	SMD1921(black)
Density (Pixels/㎡)	147,928	112,896	65,536	65,536
Module Resolution (Pixel)	96×96	84×84	64×64	64×64
Module Size (mm)	250×250	250×250	250×250	250×250
Driving Mode (Duty)	1/24	1/21	1/16	1/8
Cabinet Size (mm)	500×1000	500×1000	500×1000	500×1000
Cabinet Weight (KG)	13	13	13	13
Brightness (CD/㎡)	3000	3000	3000	4000
Viewing Angle (°)	140	140	140	140
Gray Grade (Bits)	14	14	14	14
Operation Power	AC100-240V 50-60Hz	AC100-240V 50-60Hz	AC100-240V 50-60Hz	AC100-240V 50-60Hz
Max. Power Consumption (W/㎡)	500	550	580	650
Avg. Power Consumption (W/㎡)	170	185	195	220
Frame Frequency (Hz)	≥60	≥60	≥60	≥60
Refresh Frequency (Hz)	≥3840	≥3840	≥3840	≥3840
Working Temperature (ºC)	-20～+60	-20～+60	-20～+60	-20～+60
Protection Grade	IP65(front), IP54(rear)	IP65(front), IP54(rear)	IP65(front), IP54(rear)	IP65(front), IP54(rear)

Indoor 500x1000mm EA1000H9 Rental LED Display Series Parameter

Pixel Pitch (mm)	P1.56(GOB)	P1.95(GOB)	P2.6(GOB)	P2.97
Model	EA1000H9-iP1.56	EA1000H9-iP1.95	EA1000H9-iP2.6	EA1000H9-iP2.97
Pixel Configuration	SMD1212	SMD1515	SMD1515	SMD1515
Density (Pixels/㎡)	409,600	262,144	147,928	112,896
Module Resolution (Pixel)	160×160	128×128	96×96	84×84
Module Size (mm)	250×250	250×250	250×250	250×250
Driving Mode (Duty)	1/40	1/32	1/32	1/28
Cabinet Size (mm)	500×1000	500×1000	500×1000	500×1000
Cabinet Weight (KG)	12	12	12	12
Brightness (CD/㎡)	700	750	750	750
Viewing Angle (°)	140	140	140	140
Gray Grade (Bits)	14	14	14	14
Operation Power	AC100-240V 50-60Hz	AC100-240V 50-60Hz	AC100-240V 50-60Hz	AC100-240V 50-60Hz
Max. Power Consumption (W/㎡)	300	350	350	350
Avg. Power Consumption (W/㎡)	100	120	120	120
Frame Frequency (Hz)	≥60	≥60	≥60	≥60
Refresh Frequency (Hz)	≥3840	≥3840	≥3840	≥3840
Working Temperature (ºC)	-20～+60	-20～+60	-20～+60	-20～+60
Protection Grade	IP31	IP31	IP31	IP31
